WSD40P10DN56
Manufacturer:
Winsok Semicon
Mfr.Part #:
WSD40P10DN56
Datasheet:
Description:

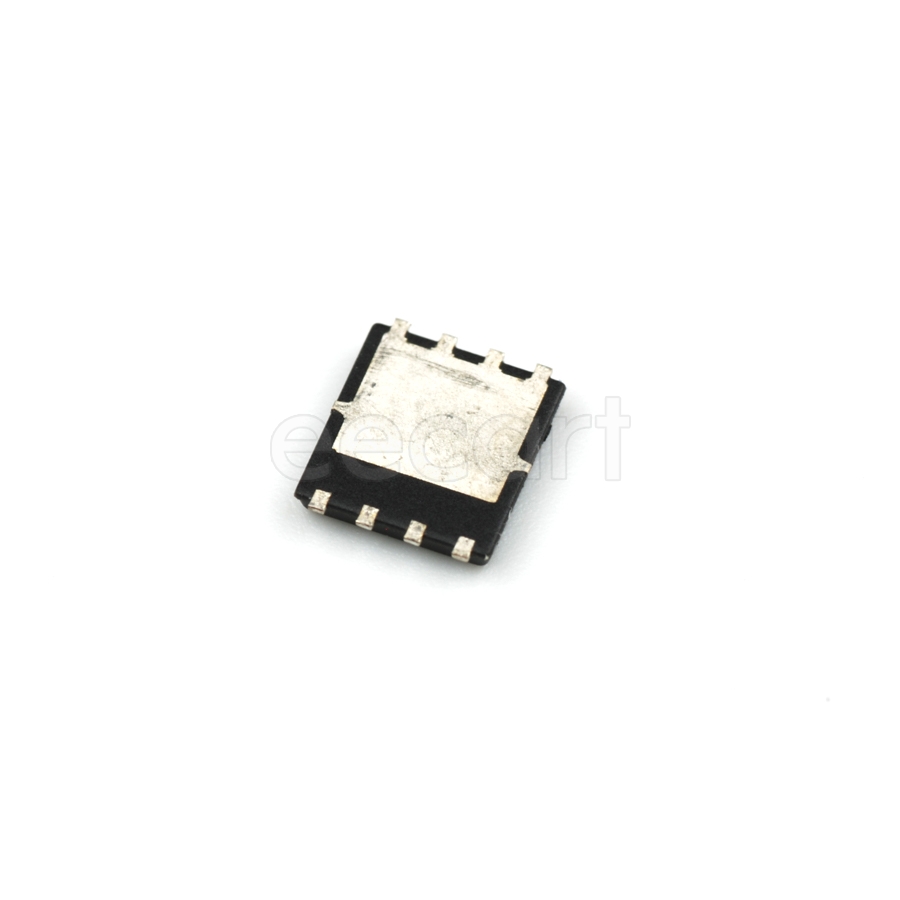

MOSFETs DFN 5x6-8L SMD/SMT P-Channel number of channels:1 54 W 100 V Continuous Drain Current (ID):30 A 44 nC
| Parameter | Value |
|---|---|
| Max Operating Temperature | 150 °C |
| Min Operating Temperature | -55 °C |
| Packaging | Reel |
| RoHS | Compliant |
| Power Dissipation | 54 W |
| Number of Channels | 1 |
| Input capacitance | 3.02 nF |
| Continuous Drain Current (ID) | 30 A |
| Gate Charge | 44 nC |
| Drain to Source Resistance | 78 mΩ |
| Gate to Source Voltage (Vgs) | 20 V |
| Drain to Source Breakdown Voltage (Vds) | 100 V |
| Gate to Source Threshold Voltage | 1.7 V |
| FET Type(Transistor Polarity) | P-Channel |
Stock: 11523
Distributors
pcbx
pcbxUnit Price$0.52291
Ext.Price$0.52291
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.52291 | $0.52291 |
| 10 | $0.41827 | $4.18270 |
| 25 | $0.38313 | $9.57825 |
| 50 | $0.35094 | $17.54700 |
| 100 | $0.32146 | $32.14600 |
| 300 | $0.29753 | $89.25900 |
| 500 | $0.27538 | $137.69000 |
| 1000 | $0.26045 | $260.45000 |
